Ground Protection Mats

Designed for medium duty vehicular access, Ground Protection Mats provide the perfect solution for a speedy and versatile roadway system across tricky ground conditions.

Made from high-density polyethylene, our market-leading plastic ground cover mats are highly flexible yet incredibly tough and are ideal to reduce axle weight pressures as well as the risk of damage to sensitive undulating surfaces such as sports pitches, stately gardens and school playing fields.

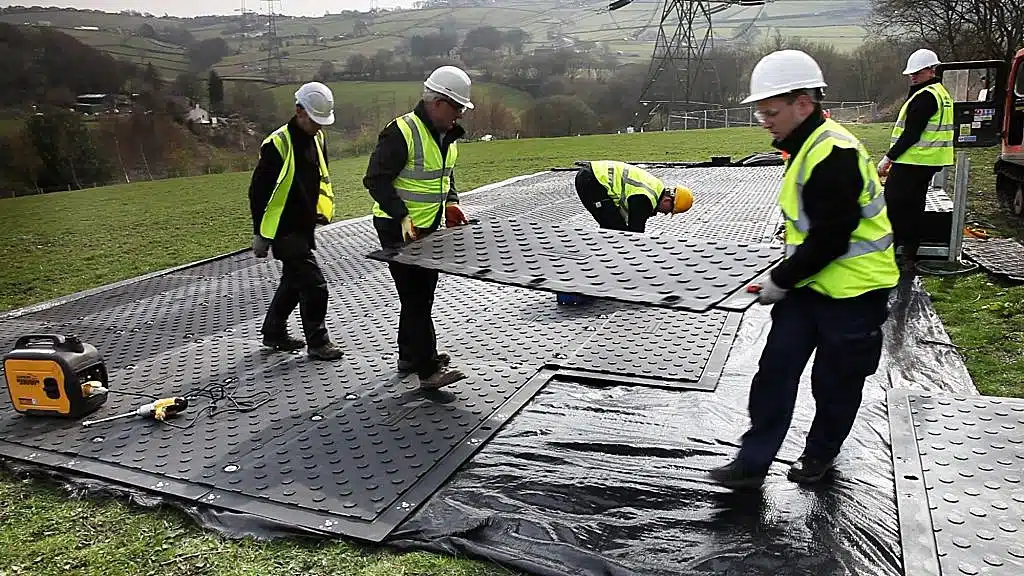

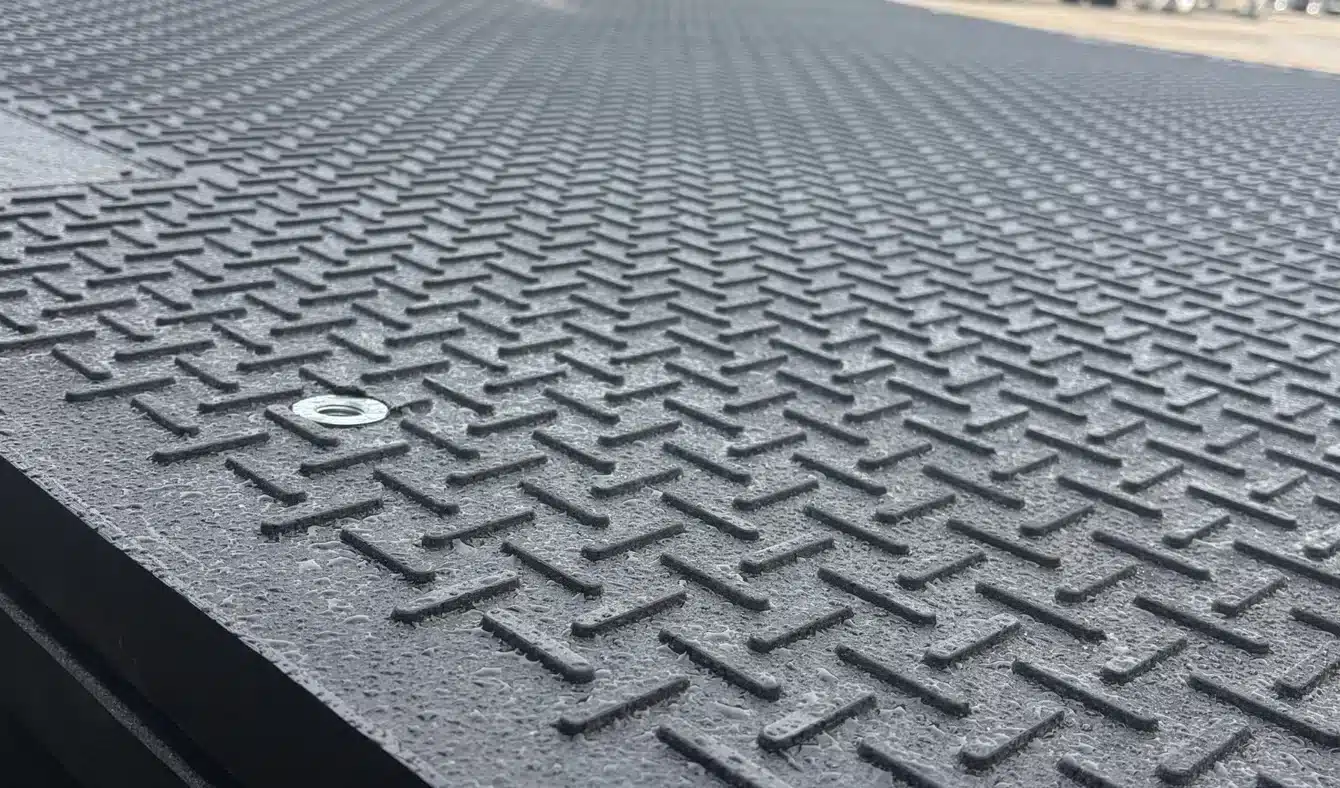

When you use our Temporary Roadway Mats, ground cover will be installed quickly, easily and safely by just 2 persons with no need for specialist plant or tools – making them the perfect solution for short-term use on sensitive ground with awkward access. The raised chevron surface also provides a high level of traction for general site traffic and rubber-tracked machinery.

Call now 01698 352751

Key Features

  • Mat made from black High-Density Polyethylene post-industrial recycled plastic

    Black High-Density Polyethylene (HDPE) post-industrial recycled plastic, naturally UV resistant due to the carbon black used for the colour.  White UV stabilised mats available.

  • Plastic trackway mats on grass

    Variable weight loading - up to 80 tones dependent upon sub-surface.  Please seek further advice from Davis Trackhire if gross weigh exceeds 40 tonnes

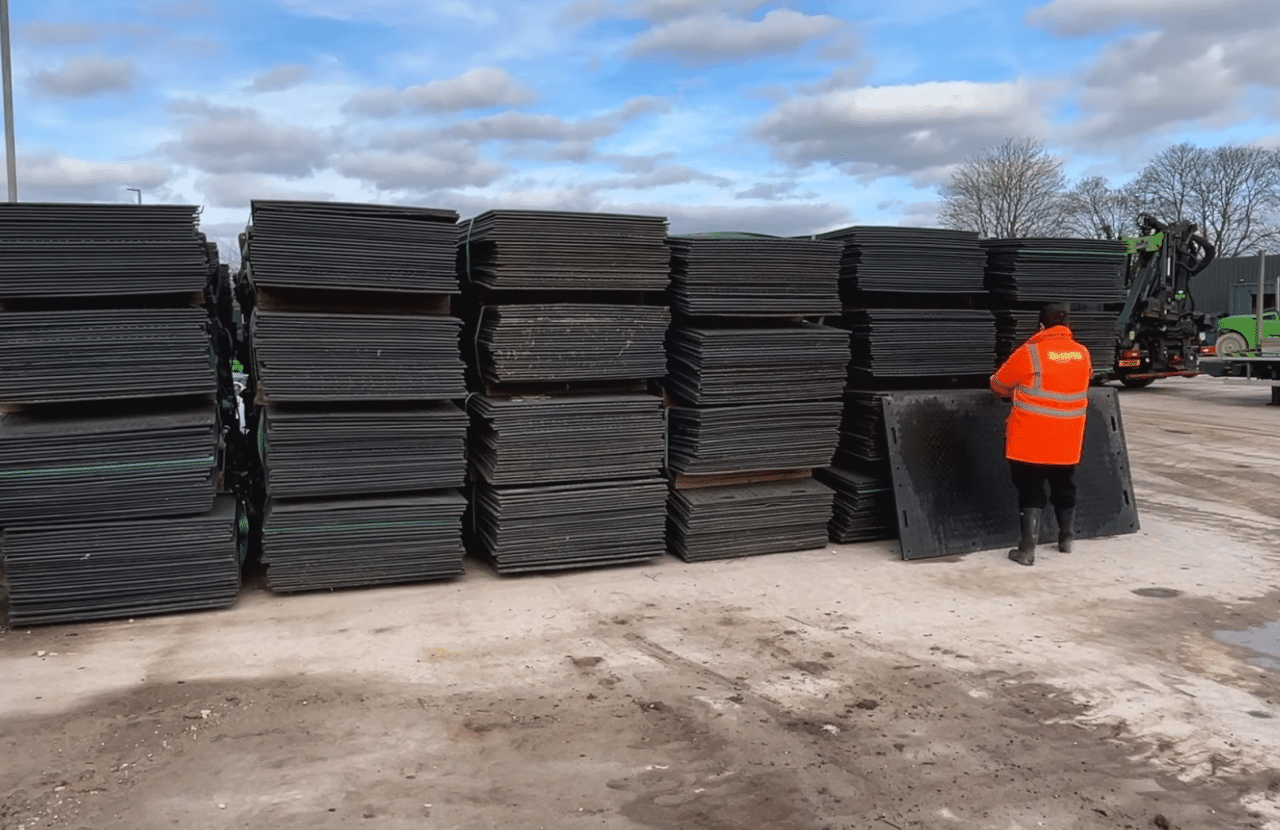

  • Davis trackhire mats stockpiled in stillages

    DTH plastic trackway mats are designed to be used with no ground preparation over grass, gravel, soil, concrete, asphalt, mud and sandy soil conditions. They can also be safely stockpiled in stillages when not in use.

  • DTH mats parallel

    DTH ground mats for heavy equipment have joining holes: one in each corner and four in the centre line (two on each 2.44m side) to create multi-directional roadways of nearly any size or shape.  DTH plastic ground protection can be connected using metal joining irons and require no specialist tools.

Download Technical Specification (pdf)

Technical Information

Dimensions and Properties

Module Size

2.44m x 1.22m (8’ x 4’)

Module Weight

39.01 kg (86lbs)

Colour

Black

Material

Black High – Density Polyethylene (HDPE) post-industrial recycled plastic, naturally UV resistant due to the carbon black used for colour. White UV-stabilised mats available.

Weight Loading

Variable – up to 80 tonnes dependent upon sub-surface. Please seek further advice from Davis Trackhire if gross weight exceeds 40 tonnes.

Compressive Strength

2,843 psi (ASTM D695-02a)

Flammability Resistance

UL-94 HB Rating

Ground Surface

DTH ground mats hire are designed to be used with no ground preparation over grass, gravel, soil, concrete, asphalt, mud and sandy soil conditions.

Connection System

DTH ground cover mats have eight holes: one in each corner and four in the centre line (two on each 2.44 m side) to create multi-directional roadways of nearly any size or shape. Ground mats can be connected using metal DTH Link connectors. DTH Links do not require tools to install.

Recent Deployment

DTH ground protection mats are highly diverse and can be installed in various configurations across a wide range of different sectors, as you can see from the below pictures from some of the various projects that they have been deployed on, including construction, events and temporary car parks.
